Modular Arithmetic

• modular arithmetic is 'clock arithmetic'
• a congruence a = b mod n says when divided by n that a and b have the same remainder
  • 100 = 34 mod 11
  • usually have 0<=b<=n-1
  • -12mod7 = -5mod7 = 2mod7 = 9mod7
  • b is called the residue of a mod n
• can do arithmetic with integers modulo n with all results between 0 and n

addition

a+b mod n

subtraction

a-b mod n = a+(-b) mod n

multiplication

a.b mod n

• derived from repeated addition
• can get a.b=0 where neither a,b=0
  • eg 2.5 mod 10

division

a/b mod n

• is multiplication by inverse of b: a/b = a.b^-1 mod n
• if n is prime b^-1 mod n exists s.t b.b^-1 = 1 mod n
  • eg 2.3=1 mod 5 hence 4/2=4.3=2 mod 5

• integers modulo n with addition and multiplication form a commutative ring with the laws of

  Associativity

  (a+b)+c = a+(b+c) mod n

  Commutativity

  a+b = b+a mod n

  Distributivity

  (a+b).c = (a.c)+(b.c) mod n

• also can chose whether to do an operation and then reduce modulo n, or reduce then do the operation, since reduction is a homomorphism from the ring of integers to the ring of integers modulo n
  • a+/-b mod n = [a mod n +/- b mod n] mod n
  • (the above laws also hold for multiplication)
• if n is constrained to be a prime number p then this forms a Galois Field modulo p denoted GF(p) and all the normal laws associated with integer arithmetic work

Exponentiation in GF(p)

• many encryption algorithms use exponentiation - raising a number a (base) to some power b (exponent) mod p
  • b = a^e mod p
• exponentiation is basically repeated multiplication, which take s O(n) multiples for a number n
• a better method is the square and multiply algorithm[1]

  let base = a, result =1
  for each bit ei (LSB to MSB) of exponent
     if ei=0 then
        square base mod p
     if ei=1 then
        multiply result by base mod p
        square base mod p (except for MSB)
  required ae is result

• only takes O(log₂ n) multiples for a number n

see Sebbery p9 Fig2.1 + example

Discrete Logarithms in GF(p)

• the inverse problem to exponentiation is that of finding the discrete logarithm of a number modulo p
  • find x where a^x = b mod p

Seberry examples p10

• whilst exponentiation is relatively easy, finding discrete logarithms is generally a hard problem, with no easy way
• in this problem, we can show that if p is prime, then there always exists an a such that there is always a discrete logarithm for any b!=0
  • successive powers of a "generate" the group mod p
• such an a is called a primitive root and these are also relatively hard to find

Greatest Common Divisor

• the greatest common divisor (a,b) of a and b is the largest number that divides evenly into both a and b
• Euclid's Algorithm is used to find the Greatest Common Divisor (GCD) of two numbers a and n, a<n
  • use fact if a and b have divisor d so does a-b, a-2b

GCD (a,n) is given by:
   let g0=n
       g1=a
       gi+1 = gi-1 mod gi
   when gi=0 then (a,n) = gi-1

   g0=98
   g1=56
   g2 = 98 mod 56 = 42
   g3 = 56 mod 42 = 14
   g4 = 42 mod 14 = 0

see Seberry Fig 2.2 p11 GCD alg [2]

Inverses and Euclid's Extended GCD Routine

• unlike normal integer arithmetic, sometimes a number in modular arithmetic has a unique inverse
  • a^-1 is inverse of a mod n if a.a^-1 = 1 mod n
  • where a,x in {0,n-1}
  • eg 3.7 = 1 mod 10
• if (a,n)=1 then the inverse always exists
• can extend Euclid's Algorithm to find Inverse by keeping track of g_i = u_i.n + v_i.a
• Extended Euclid's (or Binary GCD) Algorithm to find Inverse of a number a mod n (where (a,n)=1) is:

  Inverse(a,n) is given by:
    g0=n  u0=1  v0=0
    g1=a  u1=0  v1=1
  let
    y = gi-1 div gi
    gi+1 = gi-1 - y.gi = gi-1 mod gi
    ui+1 = ui-1 - y.ui
    vi+1 = vi-1 - y.vi
 when gi=0 then Inverse(a,n) = vi-1

eg: want to find Inverse(3,460):

i          y          g          u          v
0          -          460        1          0
1          -          3          0          1
2          153        1          1          -153
3          3          0          -3         460

	hence Inverse(3,460) = -153 = 307 mod 460

see Seberry Fig 2.3 p14 Inverse alg [3]

Euler Totient Function [[phi]](n)

• if consider arithmetic modulo n, then a reduced set of residues is a subset of the complete set of residues modulo n which are relatively prime to n
  • eg for n=10,
  • the complete set of residues is {0,1,2,3,4,5,6,7,8,9}
  • the reduced set of residues is {1,3,7,9}
• the number of elements in the reduced set of residues is called the Euler Totient function [[phi]](n)
• there is no single formula for [[phi]](n) but for various cases count how many elements are excluded[4]:

	p (p prime)	[[phi]](p) =p-1
	pr (p prime)	[[phi]](p) =pr-1(p-1)
	p.q (p,q prime)	[[phi]](p.q) =(p-1)(q-1)

see Seberry Table 2.1 p13

• several important results based on [[phi]](n) are:
• Theorem (Euler's Generalization)
  • let gcd(a,n)=1 then
  • a^[[phi]](n) mod n = 1

• Fermat's Theorem
  • let p be a prime and gcd(a,p)=1 then
  • a^p-1 mod p = 1

• Algorithms to find Inverses a^-1 mod n
  1. search 1,...,n-1 until an a^-1 is found with a.a^-1 mod n
  2. if [[phi]](n) is known, then from Euler's Generalization
     • a^-1 = a^[[phi]](n)-1 mod n
  3. otherwise use Extended Euclid's algorithm for inverse

Computing with Polynomials in GF(qn)

• have seen arithmetic modulo a prime number GF(p)
• also can do arithmetic modulo q over polynomials of degree n, which also form a Galois Field GF(qⁿ)
• its elements are polynomials of degree (n-1) or lower
  • a(x)=a_n-1x^n-1+a_n-2x^n-2+...+a₁x+a₀
• have residues for polynomials just as for integers
  • p(x)=q(x)d(x)+r(x)
  • and this is unique if deg[r(x)]<deg[d(x)]
• if r(x)=0, then d(x) divides p(x), or is a factor of p(x)
• addition in GF(qⁿ) just involves summing equivalent terms in the polynomial modulo q (XOR if q=2)
  • a(x)+b(x)=(a_n-1+b_n-1)x^n-1+...+(a₁+b₁)x+(a₀+b₀)

Multiplication with Polynomials in GF(qn)

• multiplication in GF(qⁿ) involves [5]
  • multiplying the two polynomials together (cf longhand multiplication; here use shifts & XORs if q=2)
  • then finding the residue modulo a given irreducible polynomial of degree n
• an irreducible polynomial d(x) is a 'prime' polynomial, it has no polynomial divisors other than itself and 1
• modulo reduction of p(x) consists of finding some r(x) st: p(x)=q(x)d(x)+r(x)
  • nb. in GF(2ⁿ) with d(x)=x³+x+1 can do simply by replacing x³ with x+1
• eg in GF(2³) there are 8 elements:
  • 0, 1, x, x+1, x², x²+1, x²+x, x²+x+1
• with irreducible polynomial d(x)=x³+x+1* arithmetic in this field can be summarised as:

Seberry Table 2.3 p20

• can adapt GCD, Inverse, and CRT algorithms for GF(qⁿ)
  • [[phi]](p(x)) = 2ⁿ-1 since every poly except 0 is relatively prime to p(x)
• arithmetic in GF(qⁿ) can be much faster than integer arithmetic, especially if the irreducible polynomial is carefully chosen
  • eg a fast implementation of GF(2¹²⁷) exists
• has both advantages and disadvantages for cryptography, calculations are faster, as are methods for breaking

Complexity Theory - A Potted Intro

• Complexity theory - study of how hard a problem is to solve in general
• allows classification of types of problems
• some problems intrinsically harder than others, eg
  • multiplying numbers O(n^(2))
  • multiplying matrices O(n^(2)(2n-1))
  • solving crossword O(26^(n))
  • recognizing primes O(n^(log log n))
• deal with worst case complexity
  • may on average be easier

• an instance of a problem is a particular case of a general problem
• the input length of a problem is the number n of symbols used to characterize a particular instance of it
• the order of a function f(n) - is some O(g(n)) of some function g(n) s.t.
  • f(n)<=c.|g(n)|, for all n>=0, for some c
• a polynomial time algorithm (P) is one which solves any instance of a particular problem in a length of time O(p(n)), where p is some polynomial on input length
• an exponential time algorithm (E) - is one whose solution time is not so bounded
• a non-deterministic polynomial time algorithm (NP) - is one for which any guess at the solution of an instance of the problem may be checked for validity in polynomial time
• NP-complete problems - are a subclass of NP problems for which it is known that if any such problem has a polynomial time solution, then all NP problems have polynomial solutions. These are thus the hardest NP problems
• Co-NP problems - are the complements of NP problems, to prove a guess at a solution of a Co-NP problem may well require an exhaustive search of the solution space

• traditional secret key cryptography uses a single key shared by both sender and receiver
• if this key is disclosed communications are compromised
• also does not protect sender from receiver forging a message & claiming is sent by sender, parties are equal

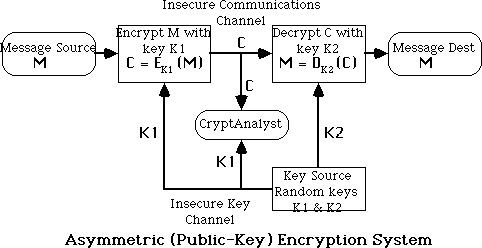

• public-key (or two-key) cryptography involves the use of two keys:
  • a public-key, which may be known by anybody, and can be used to encrypt messages, and verify signatures
  • a private-key, known only to the recipient, used to decrypt messages, and sign (create) signatures

• the public-key is easily computed from the private key and other information about the cipher (a polynomial time (P-time) problem)
• however, knowing the public-key and public description of the cipher, it is still computationally infeasible to compute the private key (an NP-time problem)
• thus the public-key may be distributed to anyone wishing to communicate securly with its owner (although secure distribution of the public-key is a non-trivial problem - the key distribution problem)
• have three important classes of public-key algorithms:
  • Public-Key Distribution Schemes (PKDS) - where the scheme is used to securly exchange a single piece of information (whose value depends on the two parties, but cannot be set).
  • This value is normally used as a session key for a private-key scheme
  • Signature Schemes - used to create a digital signature only, where the private-key signs (create) signatures, and the public-key verifies signatures
  • Public Key Schemes (PKS) - used for encryption, where the public-key encrypts messages, and the private-key decrypts messages.
  • Any public-key scheme can be used as a PKDS, just by selecting a message which is the required session key
  • Many public-key schemes are also signature schemes (provided encryption & decryption can be done in either order)

• where the private-key signs (create) signatures, and the public-key verifies signatures
• only the owner can create the digital signature, hence it can be used to verify who created a message
• generally don't sign the whole message (doubling the size of information exchanged), but just a digest or hash of the message,
• a hash function takes the message, and produces a fixed size (typically 64 to 512 bits) value dependent on the message
• it must be hard to create another message with the same hash value (otherwise some forgeries are possible)
• developing good hash functions is another non-trivial problem

Diffie-Hellman Public-Key Distribution Scheme

• first public-key type scheme proposed was a PKDS by Diffie & Hellman in 1976:

• an excellent overview of cryptography at this time is:

• it is a public-key distribution scheme
  • it cannot be used to exchange an arbitrary message
  • only a key, whose value depends on the participants (and their private and public key information)
• is based on exponentiation in a finite (Galois) field, either over integers modulo a prime, or a polynomial field
  • nb exponentiation takes O((log n)³) operations
• its security relies on the difficulty of computing logarithms in these fields
  • nb discrete logarithms takes O(e ^{log n log log n}) operations
• Diffie-Hellman PKDS works as follows:
  • two people A & B, who wish to exchange some key over an insecure communications channel can:
  • select a large prime p (~200 digit), and
  • [[alpha]] a primitive element mod p
  • A has a secret number x_A
  • B has a secret number x_B
  • A and B compute y_A and y_B respectively, which are then made public
    • y_A = [[alpha]]^xA mod p y_B = [[alpha]]^xB mod p
  • the key is then calculated as
    • K_AB = [[alpha]]^xA.xB mod p
    • = y_A^xB mod p (which B can compute)
    • = y_B^xA mod p (which A can compute)
  • and may then be used in a private-key cipher to secure communications between A and B
• nb: if the same two people subsequently wish to communicate, they will have the same key as before, unless they change their public-key (usually not often)

RSA Public-Key Cryptosystem

• best known and widely regarded as most practical public-key scheme was proposed by Rivest, Shamir & Adleman in 1977:

• it is a public-key scheme which may be used for encrypting messages, exchanging keys, and creating digital signatures
• is based on exponentiation in a finite (Galois) field over integers modulo a prime
  • nb exponentiation takes O((log n)³) operations
• its security relies on the difficulty of calculating factors of large numbers
  • nb factorization takes O(e ^{log n log log n}) operations
  • (same as for discrete logarithms)
• the algorithm is patented in North America (although algorithms cannot be patented elsewhere in the world)
  • this is a source of legal difficulties in using the scheme

• RSA is a public key encryption algorithm based on exponentiation using modular arithmetic
• to use the scheme, first generate keys:
• Key-Generation by each user consists of:
  • selecting two large primes at random (~100 digit), p, q
  • calculating the system modulus R=p.q p, q primes
  • selecting at random the encryption key e,
  • e < R, gcd(e, F(R)) = 1
  • solving the congruence to find the decryption key d,
  • e.d [[equivalence]] 1 mod [[phi]](R) 0 <= d <= R
  • publishing the public encryption key: K1={e,R}
  • securing the private decryption key: K2={d,p,q}
• Encryption of a message M to obtain ciphertext C is:
• C = M^e mod R 0 <= d <= R
• Decryption of a ciphertext C to recover the message M is:
  • M = C^d = M^e.d = M^{1+n.[[phi]](R)} = M mod R
• the RSA system is based on the following result:

	X [[phi]](R) = 1 mod R
		for all x not divisible by p or q
		and [[Phi]](R) = (p-1)(q-1)

RSA Example

• usually the encryption key e is a small number, which must be relatively prime to [[phi]](R) (ie GCD(e, [[phi]](R)) = 1)
• typically e may be the same for all users (provided certain precautions are taken), 3 is suggested
• the decryption key d is found by solving the congruence:

		e.d [[equivalence]] 1 mod [[phi]](R),	0 <= d <= R,

• an extended Euclid's GCD or Binary GCD calculation is done to do this.

	given e=3, R=11*47=517, [[phi]](R)=10*46=460
	then d=Inverse(3,460) by Euclid's alg:
	  i    y    g    u    v
	  0    -  460    1    0
	  1    -    3    0    1
	  2  153    1    1 -153
	  3    3    0   -3  460
	ie:	d = -153, or 307 mod 517

• a sample RSA encryption/decryption calculation is:

	M = 26
	C = 263 mod 517 = 515
	M = 515307 mod 517 = 26

Security of RSA

• The security of the RSA scheme rests on the difficulty of factoring the modulus of the scheme R
• best known factorization algorithm (Brent-Pollard) takes:

Decimal Digits in R                          #Bit Operations to Factor R
  20                                         7200
  40                                         3.11e+06
  60                                         4.63e+08
  80                                         3.72e+10
100                                          1.97e+12
120                                          7.69e+13
140                                          2.35e+15
160                                          5.92e+16
180                                          1.26e+18
200                                          2.36e+19

• This leads to R having a length of 200 digits (or 600 bits) given that modern computers perform 1-100 MIPS the above can be divided by 10⁶ to get a time in seconds
  • nb: currently 1e+14 operations is regarded as a limit for computational feasability and there are 3e+13 usec/year

• but most (all!!) computers can't directly handle numbers larger than 32-bits (64-bits on the very newest)
• hence need to use multiple precision arithmetic libraries to handle numbers this large

Multi-Precision Arithmetic

• involves libraries of functions that work on multiword (multiple precision) numbers
• classic references are in Knuth vol 2 - "Seminumerical Algorithms"
  • multiplication digit by digit
  • do exponentiation using square and multiply[6]
• are a number of well known multiple precision libraries available - so don't reinvent the wheel!!!!
• can use special tricks when doing modulo arithmetic, especially with the modulo reductions

Faster Modulo Reduction

Given an integer A of n characters (a₀, ... , a_n-1) of base b

then

ie: this implies that the MSD of a number can be removed and its remainder mod m added to the remaining digits will result in a number that is congruent mod m to the original.

* Chivers algorithm for reducing a number is thus:

1. Construct an array R = (b^d, 2.b^d, ... , (b-1).b^d)(mod m)

2. FOR i = n-1 to d do

WHILE A[i] != 0 do

j = A[i];

A[i] = 0;

A = A + b^i-d.R[j];

END WHILE

END FOR

where A[i] is the i^th character of number A

R[j] is the j^th integer residue from the array R

n is the number of symbols in A

d is the number of symbols in the modulus

Speeding up RSA - Alternate Multiplication Techniques

• conventional multiplication takes O(n²) bit operations, faster techniques include:
• the Schonhage-Strassen Integer Multiplication Algorithm:
  • breaks each integer into blocks, and uses them as coefficients of a polynomial
  • evaluates these polynomials at suitable points, & multiplies the resultant values
  • interpolates these values to form the coefficients of the product polynomial
  • combines the coefficients to form the product of the original integer
  • the Discrete Fourier Transform, and the Convolution Theorem are used to speed up the interpolation stage
  • can multiply in O(n log n) bit operations
• the use of specialized hardware because:
  • conventional arithmetic units don't scale up, due to carry propogation delays
  • so can use serial-parallel carry-save, or delayed carry-save techniques with O(n) gates to multiply in O(n) bit operations,
  • or can use parallel-parallel techniques with O(n²) gates to multiply in O(log n) bit operations

RSA and the Chinese Remainder Theorem

• a significant improvement in decryption speed for RSA can be obtained by using the Chinese Remainder theorem to work modulo p and q respectively
  • since p,q are only half the size of R=p.q and thus the arithmetic is much faster
• CRT is used in RSA by creating two equations from the decryption calculation:

	M = Cd mod R

	M1 = M mod p = (C mod p)d mod (p-1)
	M2 = M mod q = (C mod q)d mod (q-1)

	M = M1 mod p	M = M2 mod q

	M = [((M2 +q - M1)u mod q] p + M1

		p.u mod q = 1

Primality Testing and RSA

• The first stage of key-generation for RSA involves finding two large primes p, q
• Because of the size of numbers used, must find primes by trial and error
• Modern primality tests utilize properties of primes eg:
  • a^n-1 = 1 mod n where GCD(a,n)=1
  • all primes numbers 'n' will satisfy this equation
  • some composite numbers will also satisfy the equation, and are called pseudo-primes.
• Most modern tests guess at a prime number 'n', then take a large number (eg 100) of numbers 'a', and apply this test to each. If it fails the number is composite, otherwise it is is probably prime.
• There are a number of stronger tests which will accept fewer composites as prime than the above test. eg:

• Software implementations
  • generally perform at 1-10 bits/second on block sizes of 256-512 bits
  • two main types of implementations:
    • - on micros as part of a key exchange mechanism in a hybrid scheme
    • - on larger machines as components of a secure mail system
• Harware Implementations
  • generally perform 100-10000 bits/sec on blocks sizes of 256-512 bits
  • all known implementations are large bit length conventional ALU units

El Gamal

• a variant of the Diffie-Hellman key distribution scheme, allowing secure exchange of messages
• published in 1985 by ElGamal in

• like Diffie-Hellman its security depends on the difficulty of factoring logarithms
• Key Generation
  • select a large prime p (~200 digit), and
  • [[alpha]] a primitive element mod p
  • A has a secret number x_A
  • B has a secret number x_B
  • A and B compute y_A and y_B respectively, which are then made public
    • y_A = [[alpha]]^xA mod p
    • y_B = [[alpha]]^xB mod p
• to encrypt a message M into ciphertext C,
  • selects a random number k, 0 <= k <= p-1
  • computes the message key K
    • K = y_B^k mod p
  • computes the ciphertext pair: C = {c1,c2}
    • C₁ = [[alpha]]^k mod p C₂ = K.M mod p

• to decrypt the message
  • extracts the message key K
    • K = C₁^xB mod p = [[alpha]]^k.xB mod p
  • extracts M by solving for M in the following equation:
    • C₂ = K.M mod p

Other Public-Key Schemes

• a number of other public-key schemes have been proposed, some of the better known being:
  • Knapsack based schemes
  • McEleice's Error Correcting Code based schems

• ALL of these schemes have been broken

• the only currently known secure public key schemes are those based on exponentiation

• it has proved to be very very difficult to develop secure public key schemes
• this in part is why they have not been adopted faster, as their theorectical advantages might have suggested
